Intellivision Entertainment Computer System (ECS) Rev C


The Intellivision Master Component had been heavily advertised to be followed up by the release of a 'Keyboard Component' that would turn the Mattel games machine into a home computer.

The Keyboard Component was to be a larger casing that the entire Intellivision Master Component was inserted. Some of the features advertised were a data tape drive, an external port for cartridges (the Intellivisions native port was inaccessible once inside), support for a forty column printer and a keyboard that contained all the smarts the Master Component didn't. The Keyboard Component would have also upgraded the system's memory to 64K and that was very reasonable at the time.

The data tape drive would have had been able to provide an audio track as well as a data track (much like the Atari 1010 drive) making it ideal for educational software as the user could receive spoken information while programs loaded.

Unfortunately, mainly due to it being an amazingly ambitious piece of tech for the time and being prohibitively expensive to manufacture it never got off the ground.
What it did do is trigger enough public outcry that the US Federal Trade Commission fined Mattel $10,000 per day until they made good on their promise to release the hardware to consumers.

Enter the Intellivision Entertainment Computer System (ECS). In 1981 Mattel management had started to become concerned that the Keyboard Component would never get up and running and so had a secret team working on a much cheaper option, the ECS. The team was kept secret purely so it wouldn't enrage the Keyboard Component development team.

When the FTC hit Mattel with the daily fine it was the ECS's time to shine even though barely scraped through the check list to turn the Intellivision into a home computer. Offering only a 2K memory upgrade and limited storage and output capabilities it saved Mattel's collective arses.

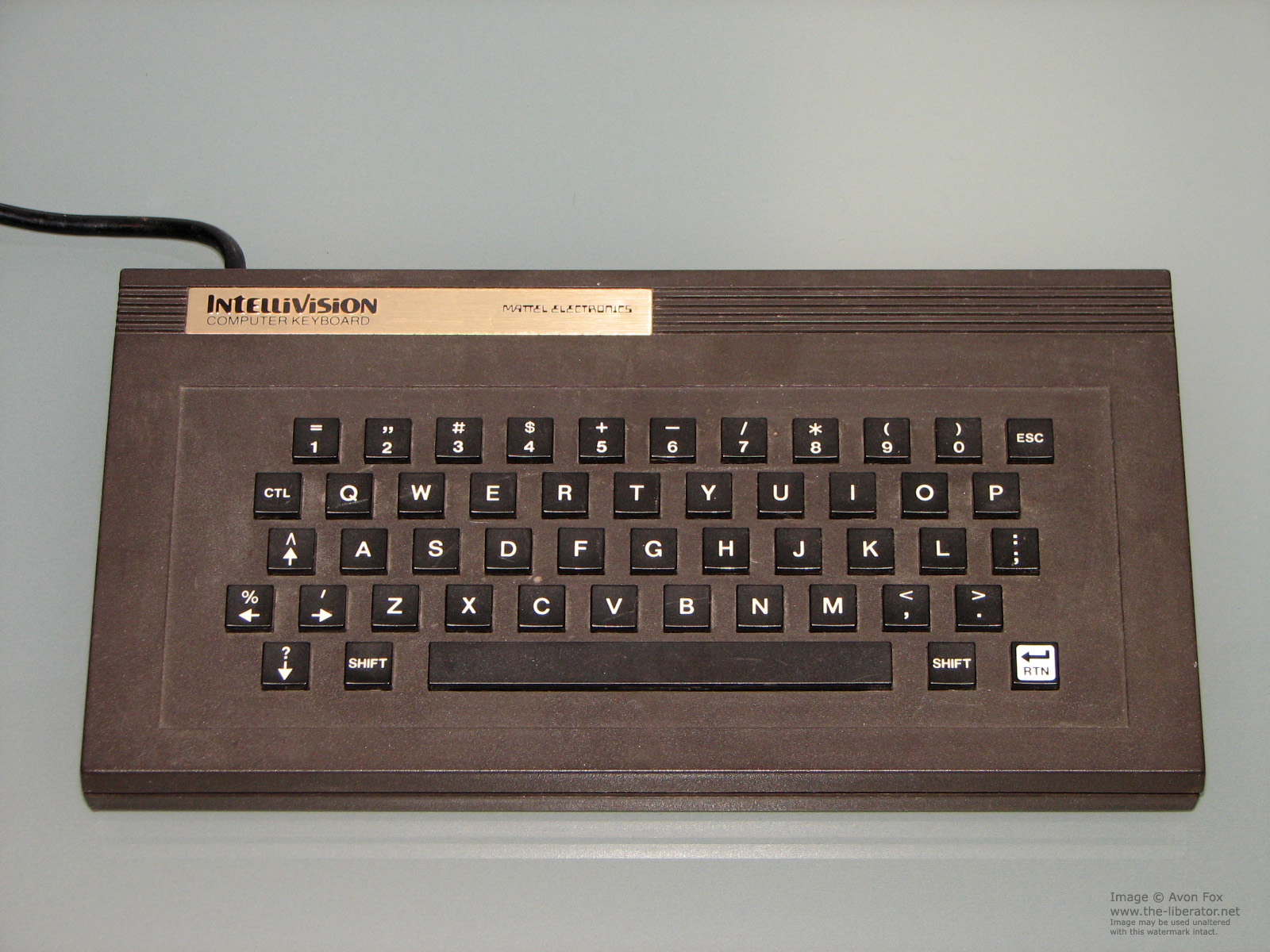

The ECS came with a very basic BASIC loaded on ROM. Users could write programs, save/load them and print. So now the Intellivision was a computer with a keyboard that is HORRIBLE to use and prone to stuck keys.

The only really redeeming feature is that the ECS came with a decent sound chip allowing you to plug a dedicated, forty nine key piano keyboard turning it in to a horrible looking, multi-voice synthesizer; admittedly the first of its kind for a game console.

Very shortly after it was released, software development halted for the ECS and Mattel moved away from add-on hardware.

It really is a horrible, brown chunk. It's a genuine shame as if the Intellivision the first genuine 16-bit gaming system) could have been upgraded to a half decent computer, the Commodore 64 may have had a very different history.


Intellivision Entertainment Computer System (ECS) Rev C
Computer Adapter and Keyboard

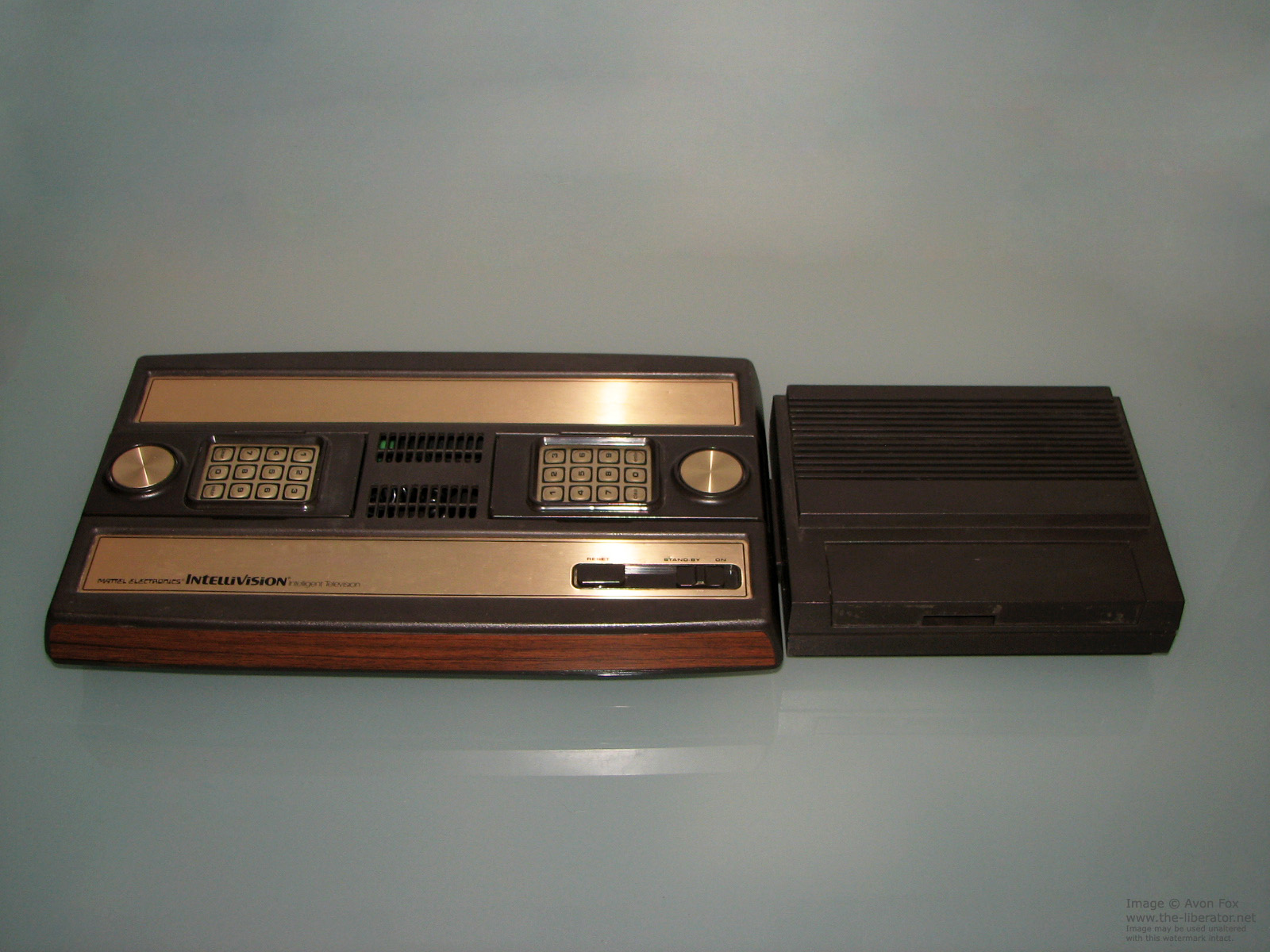

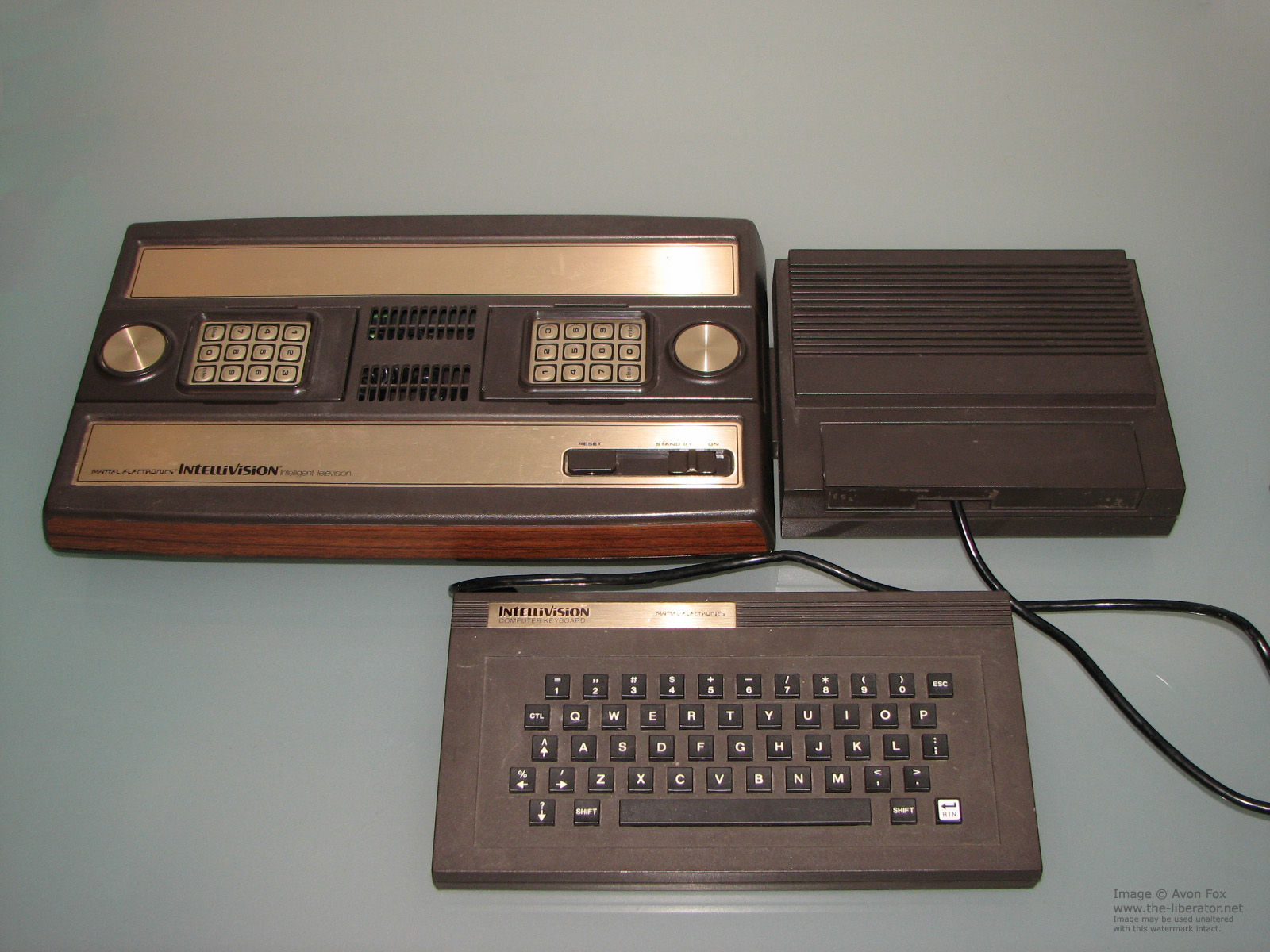

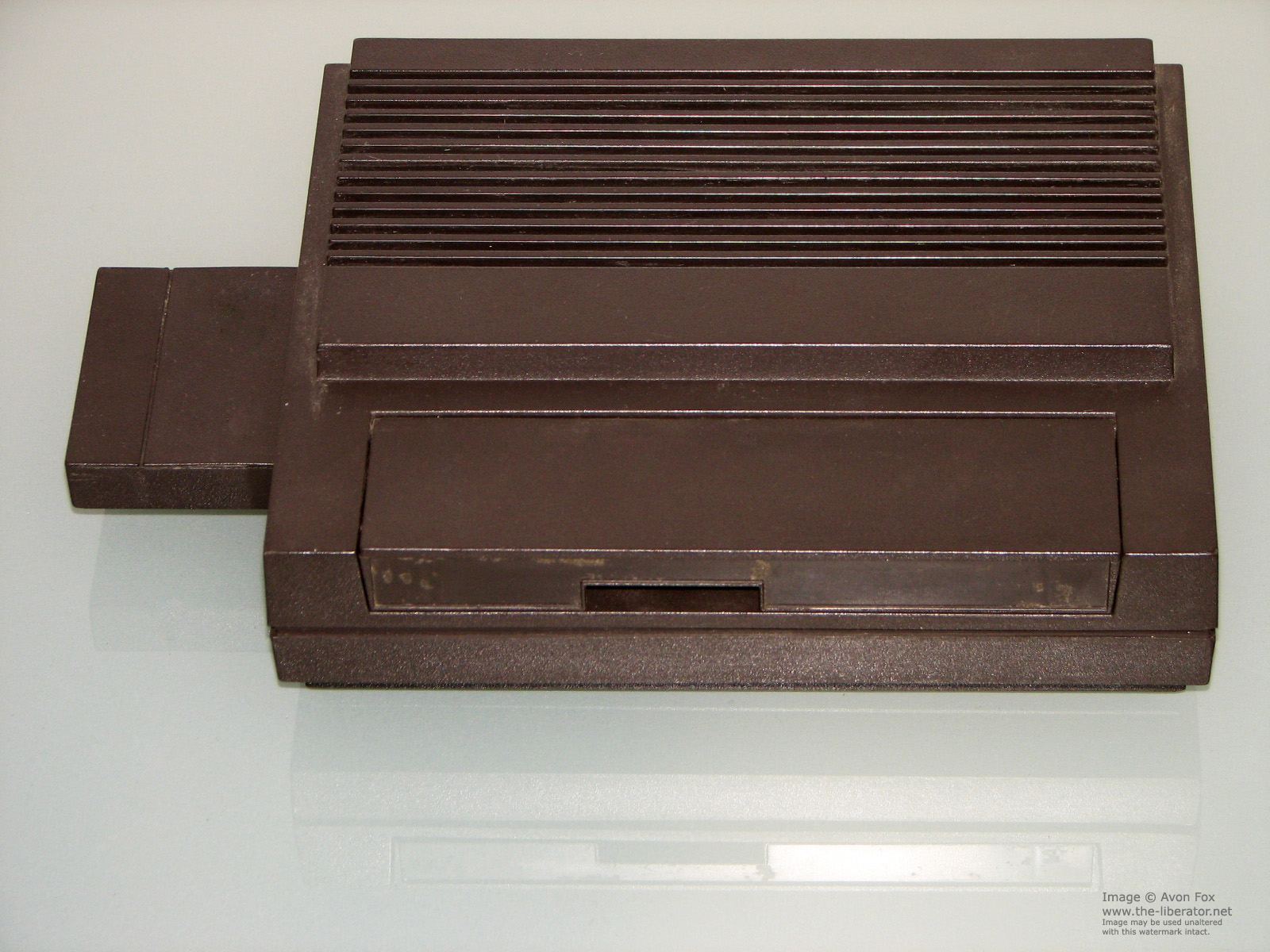

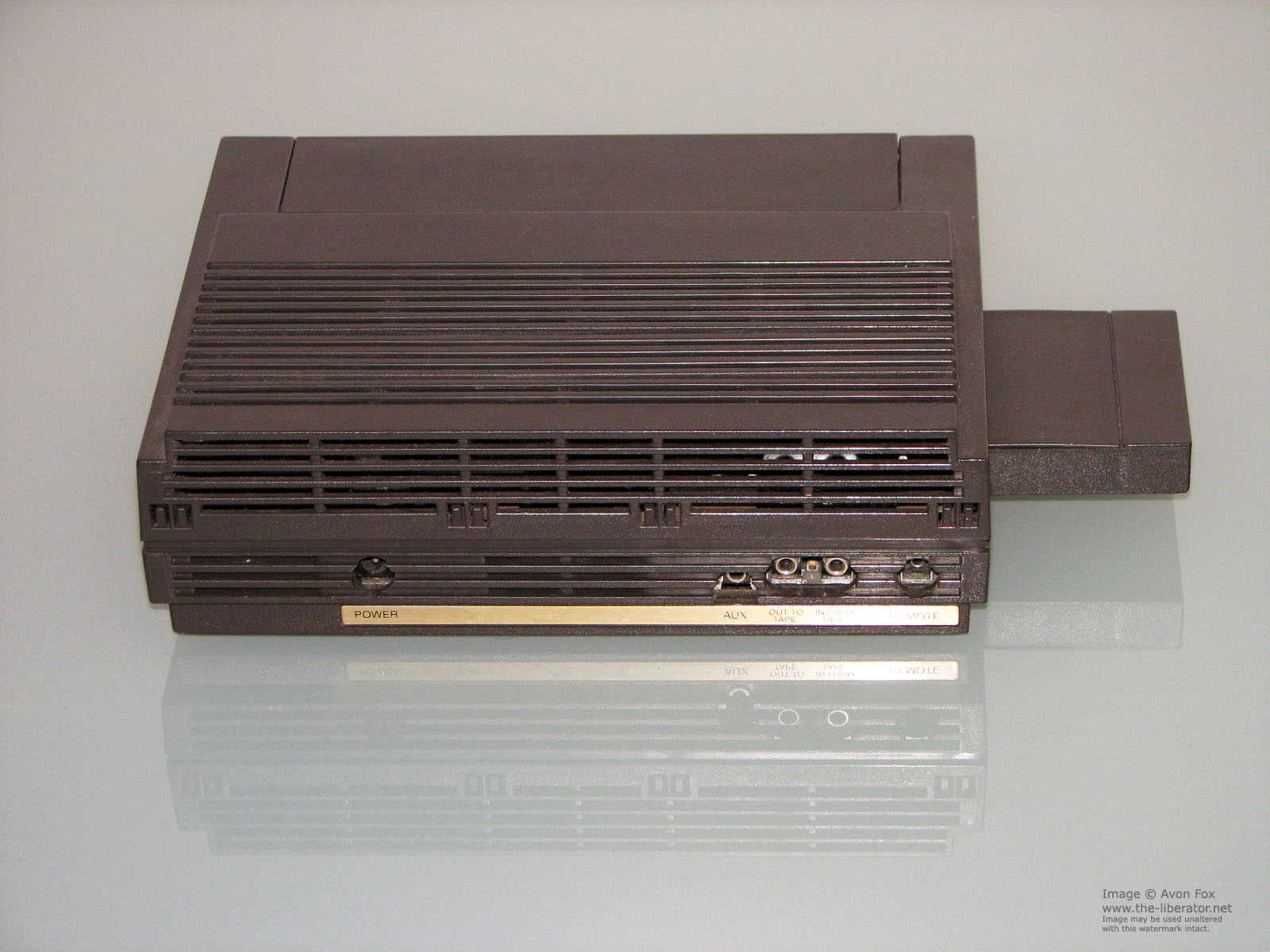

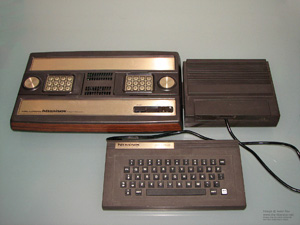

Intellivision Entertainment Computer System ECS

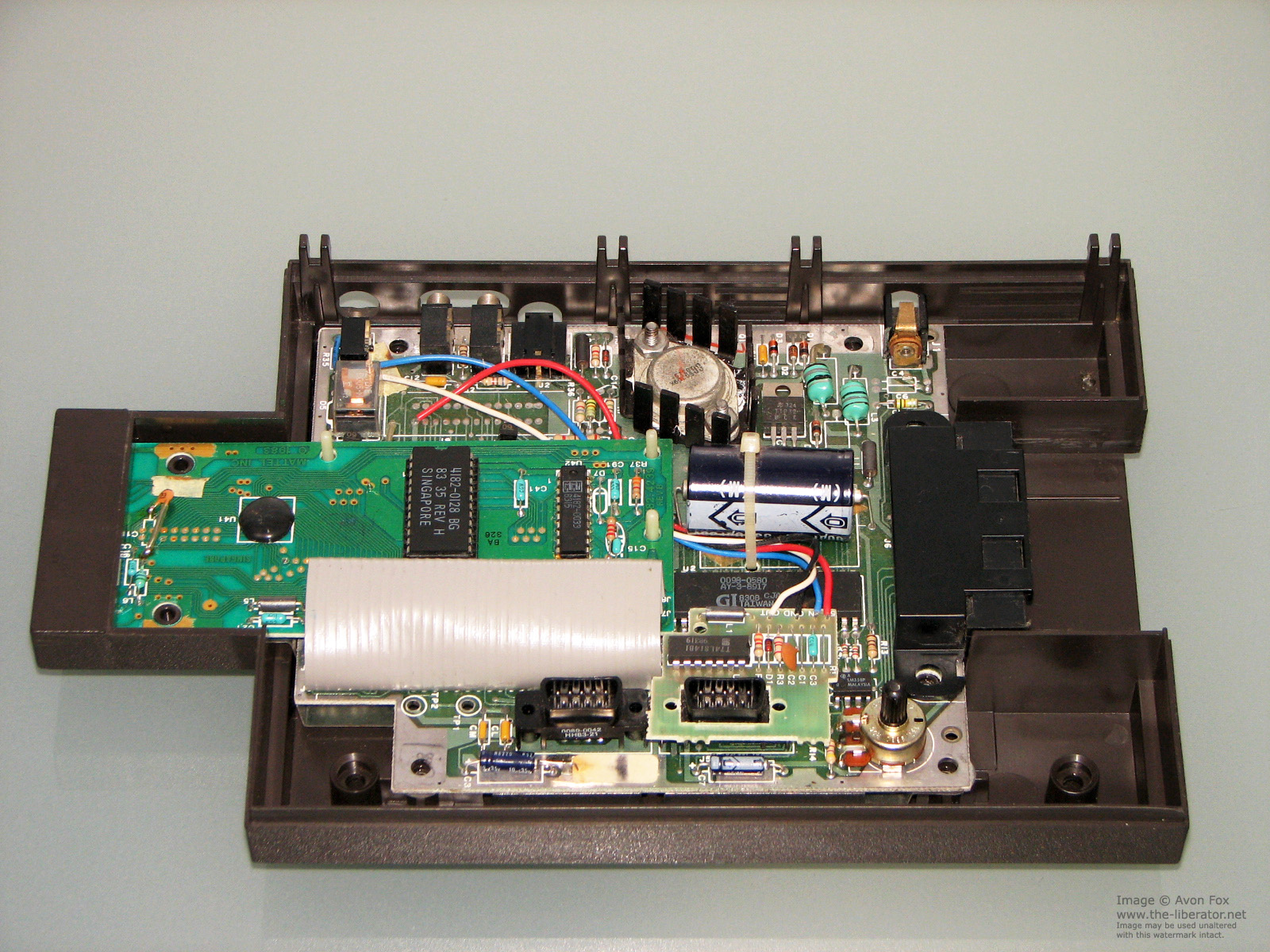

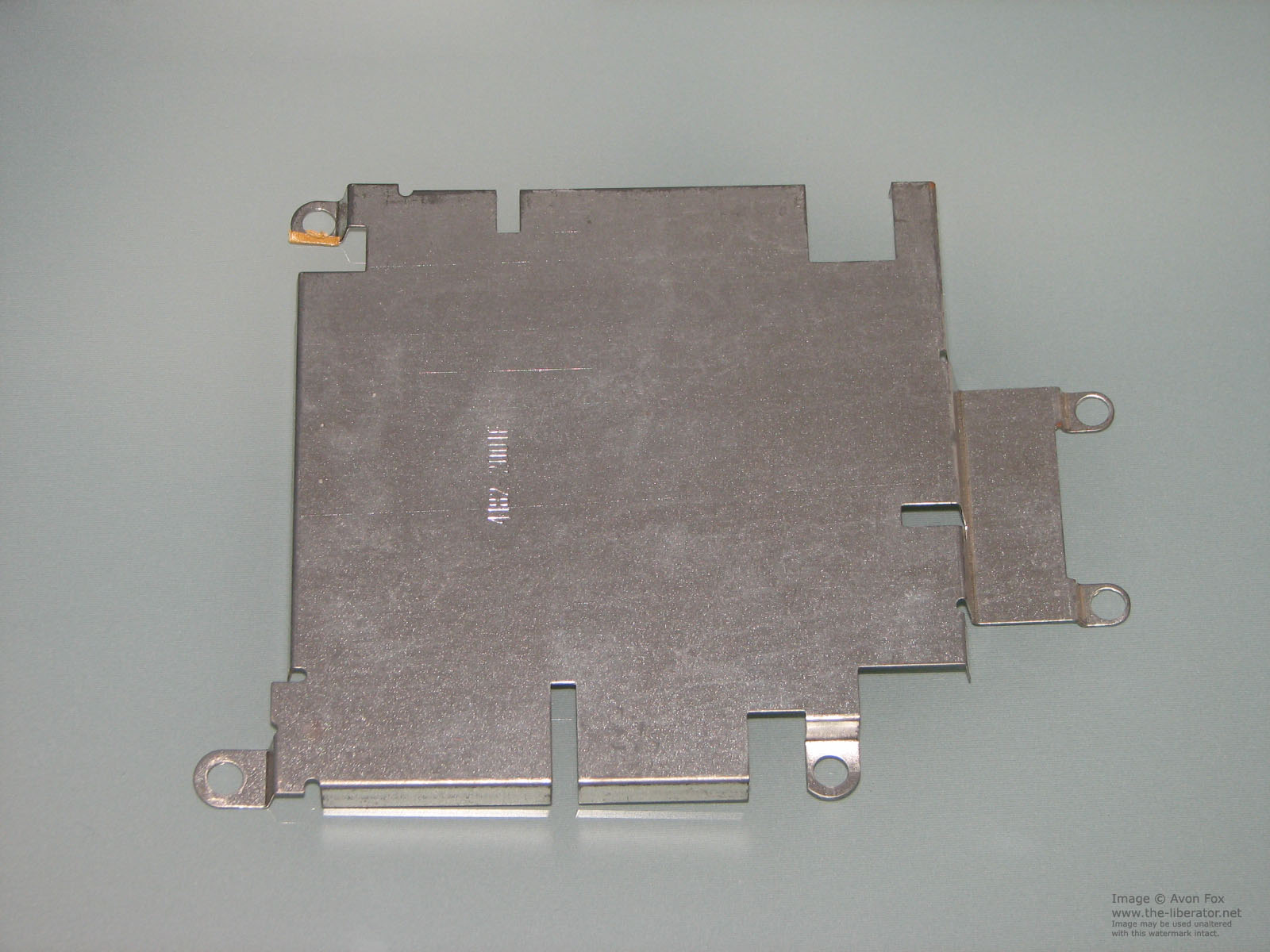

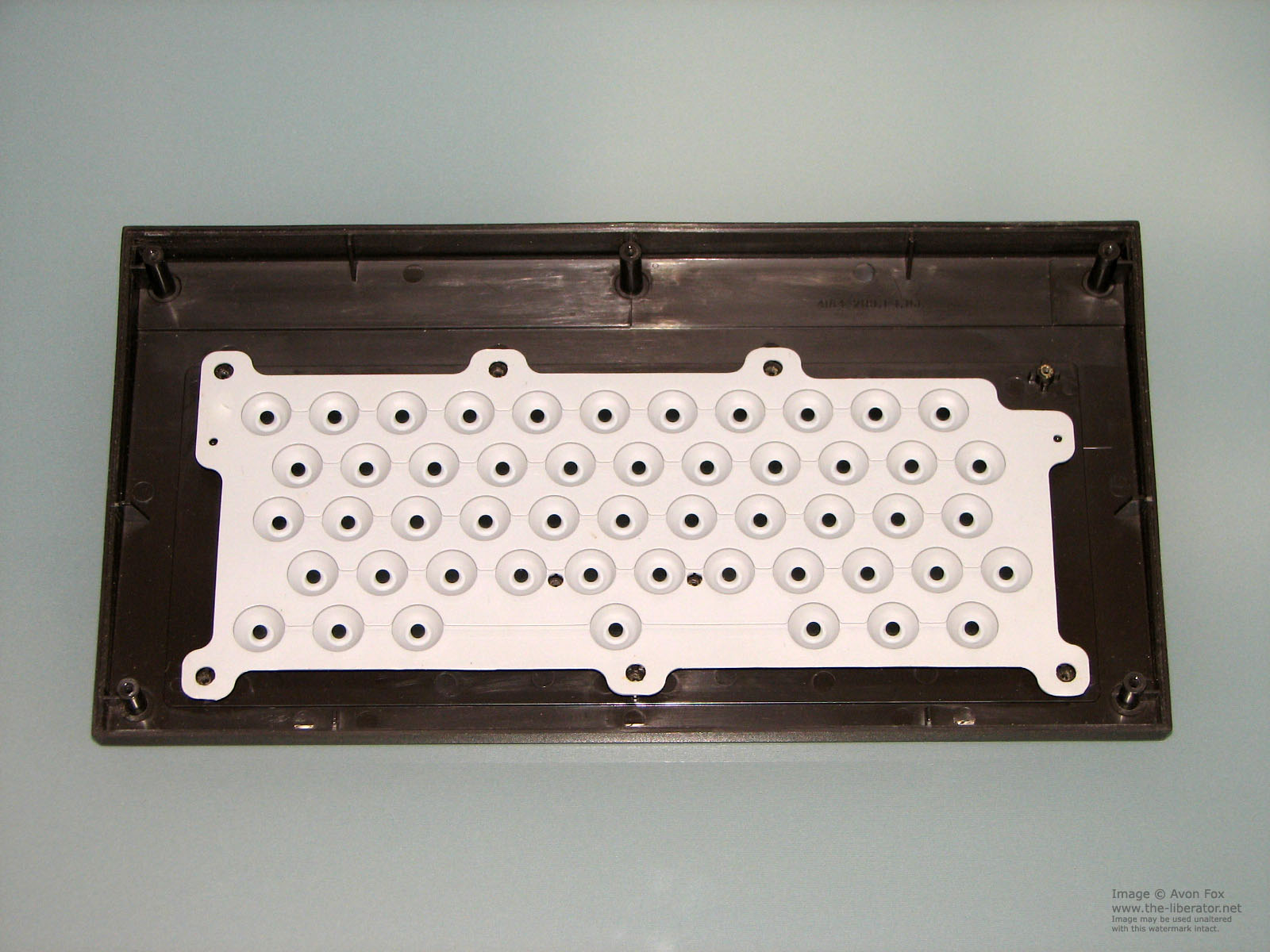

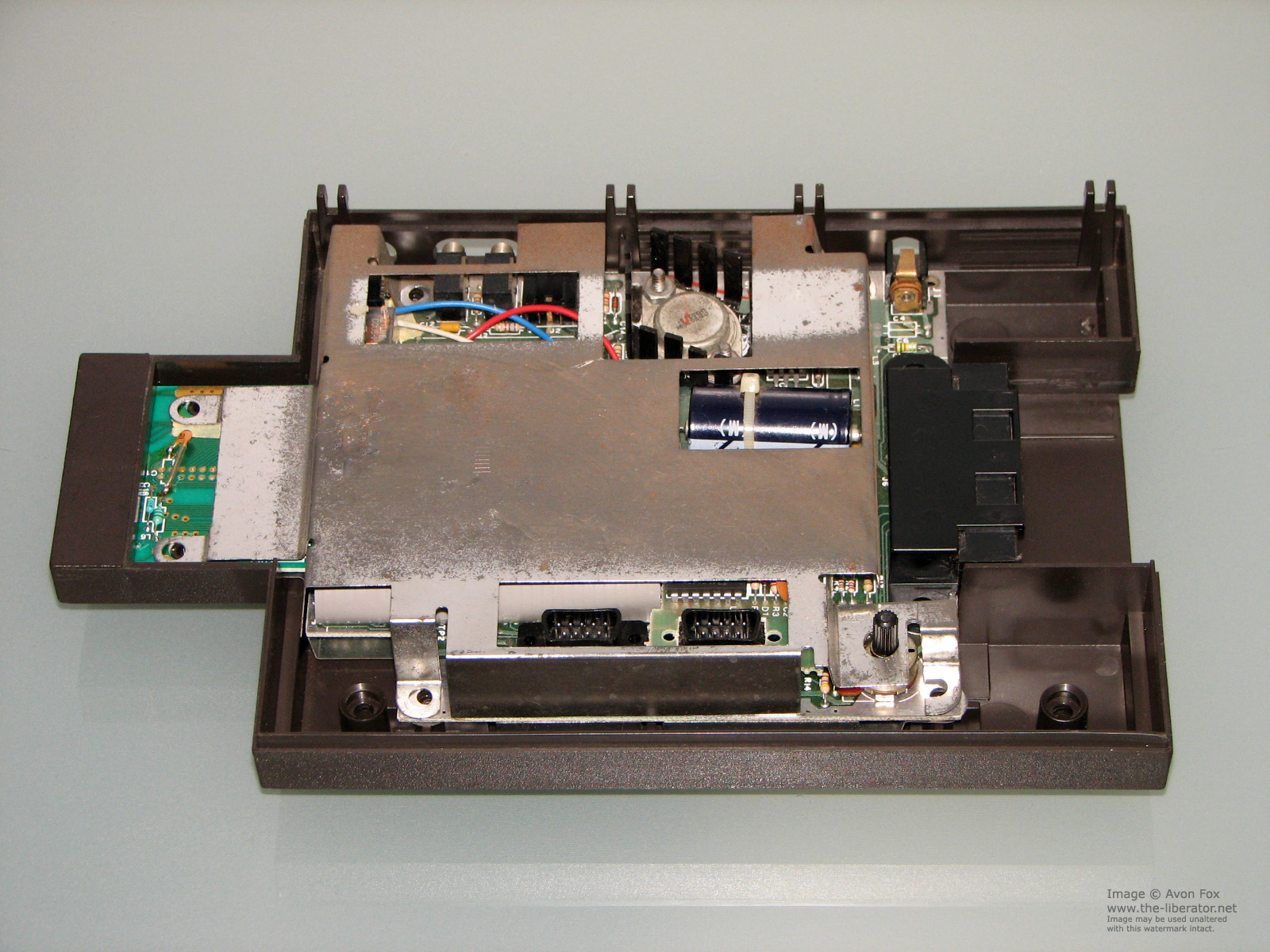

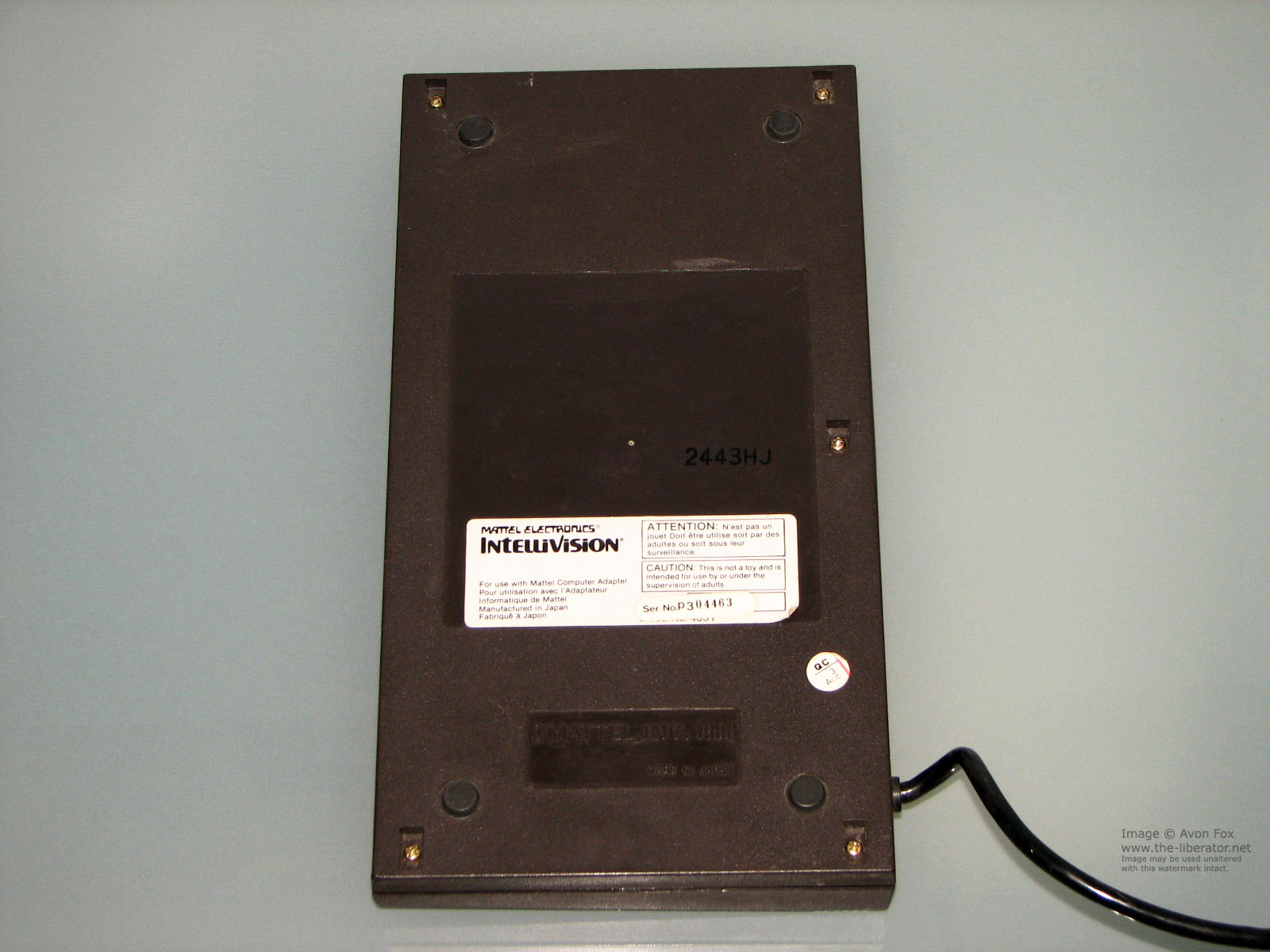

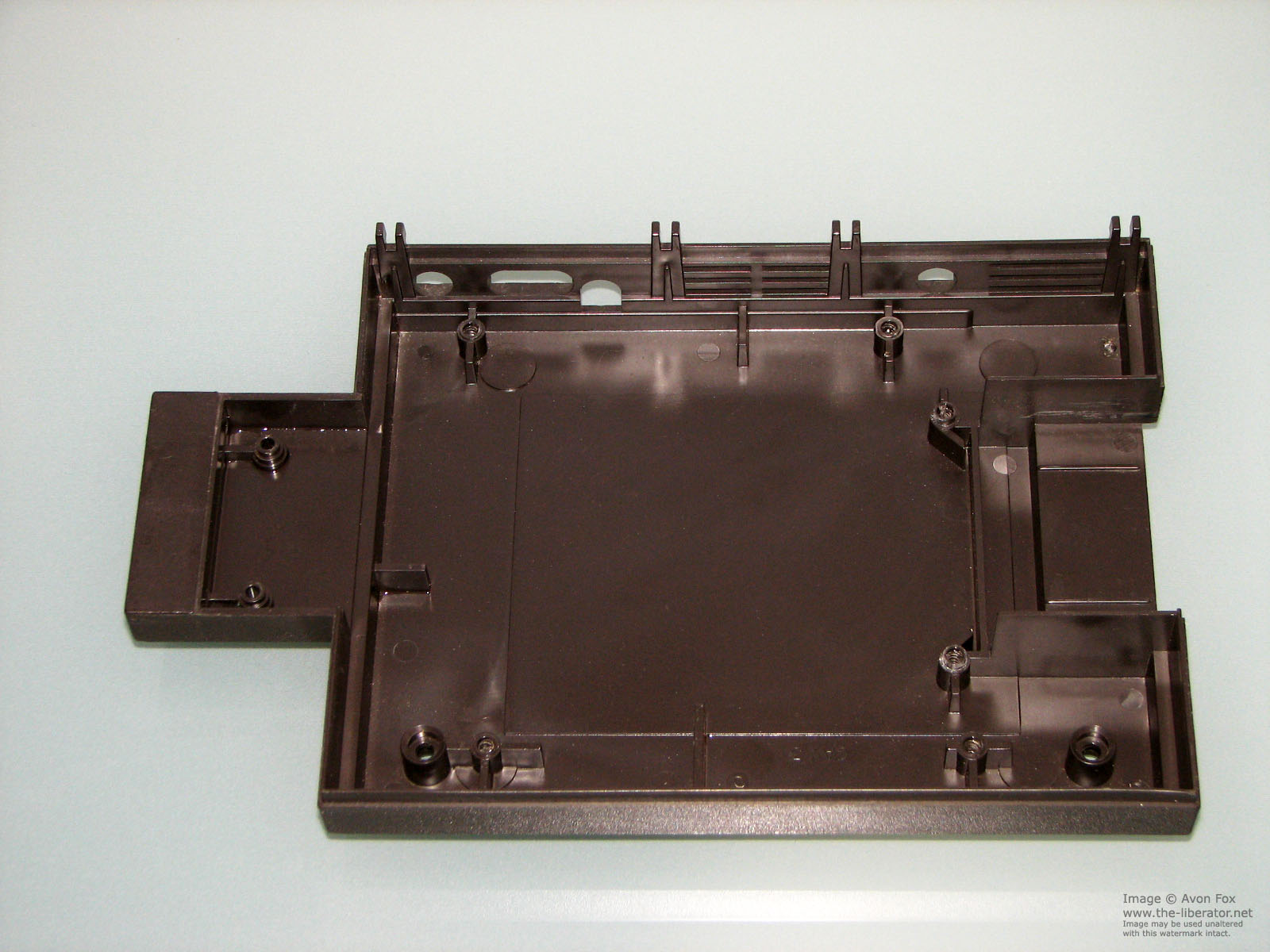

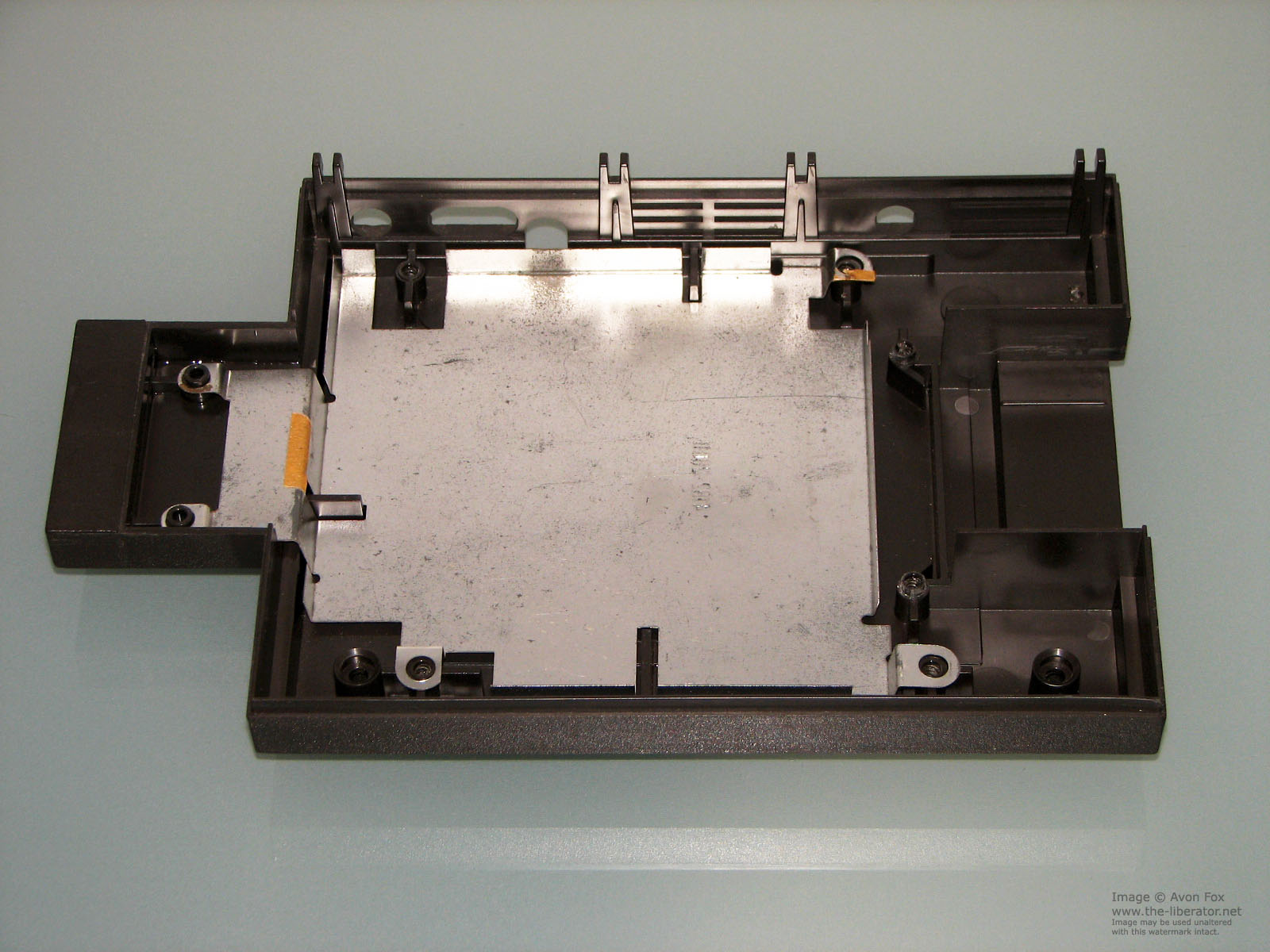

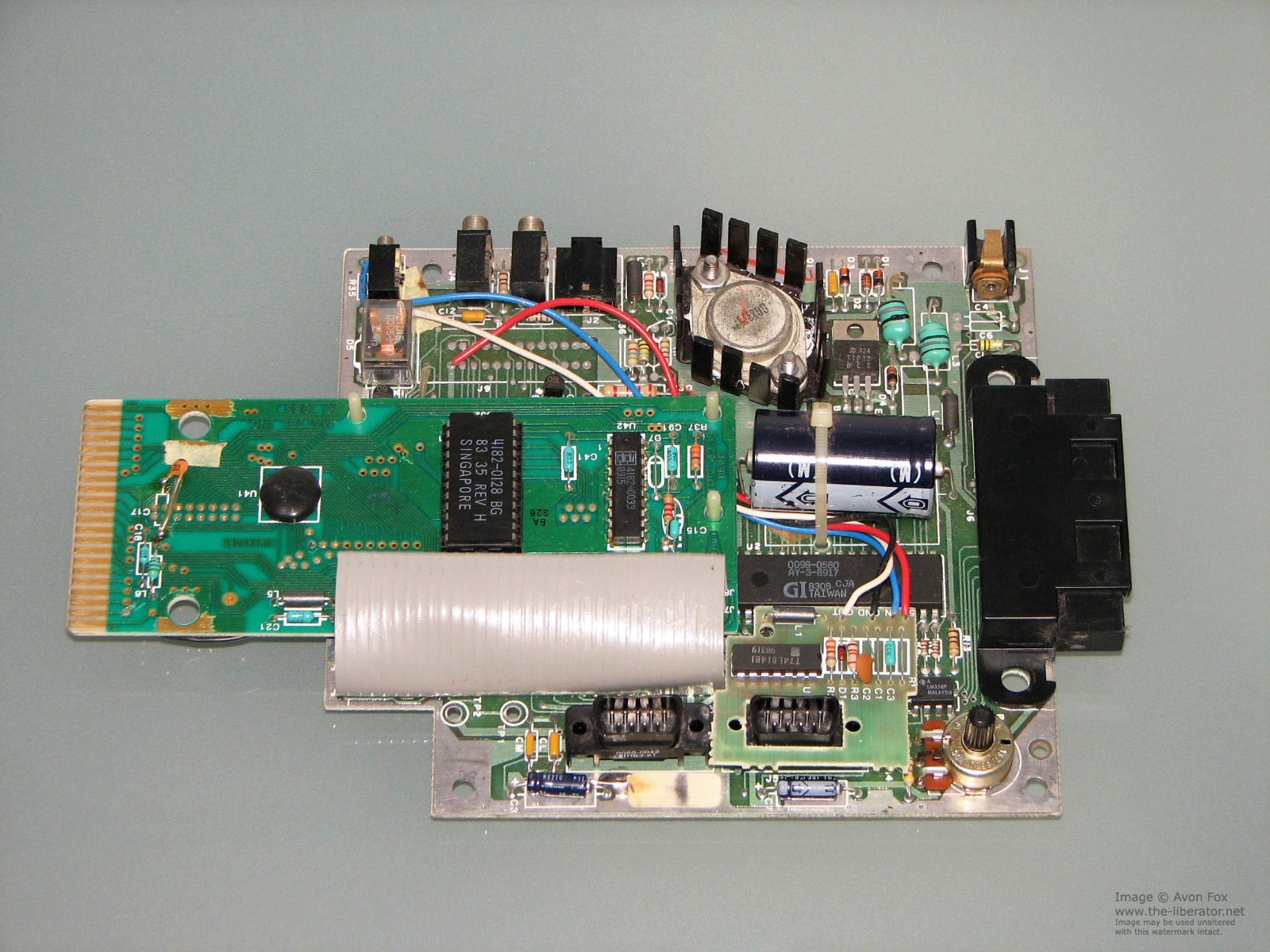

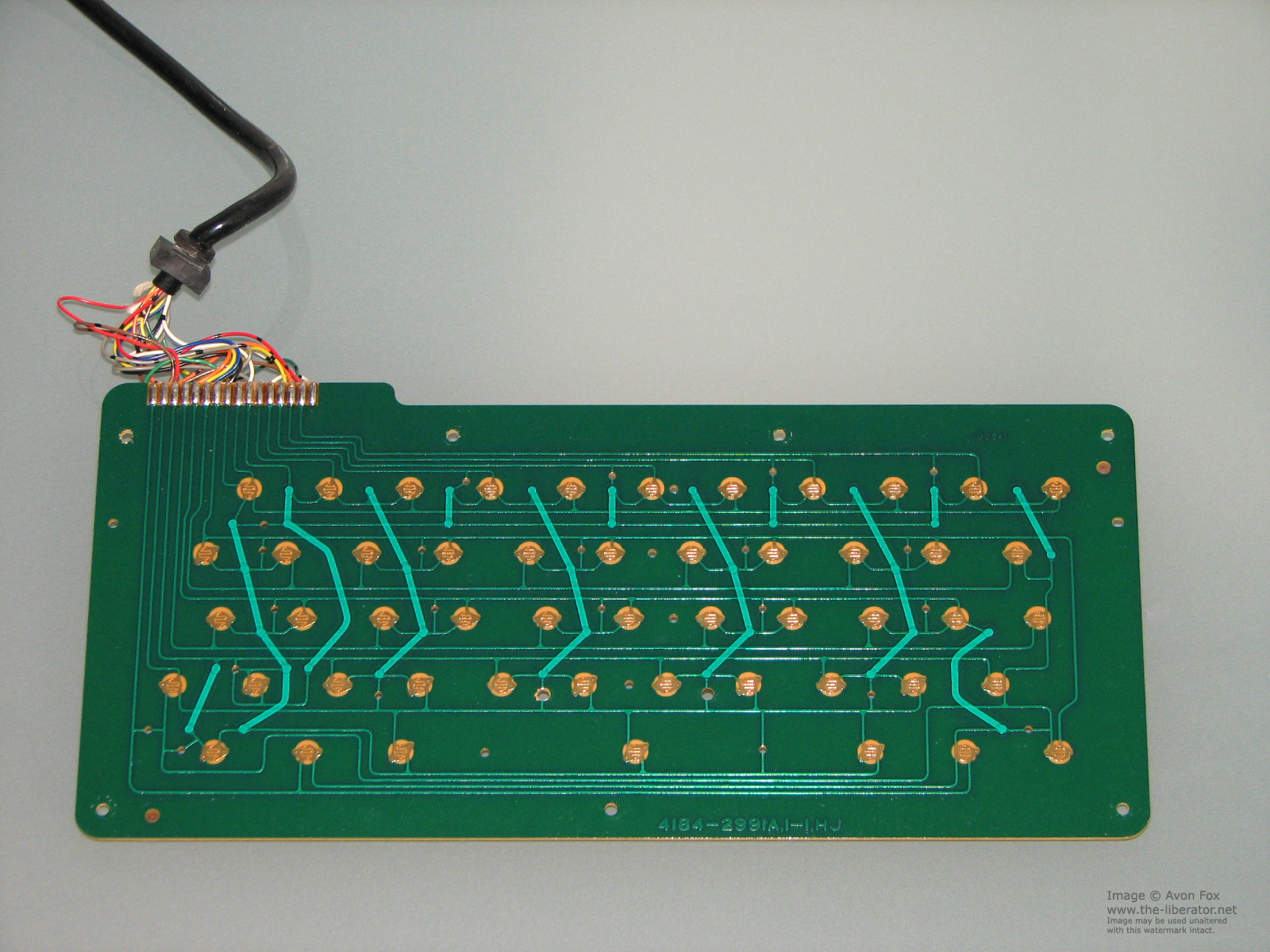

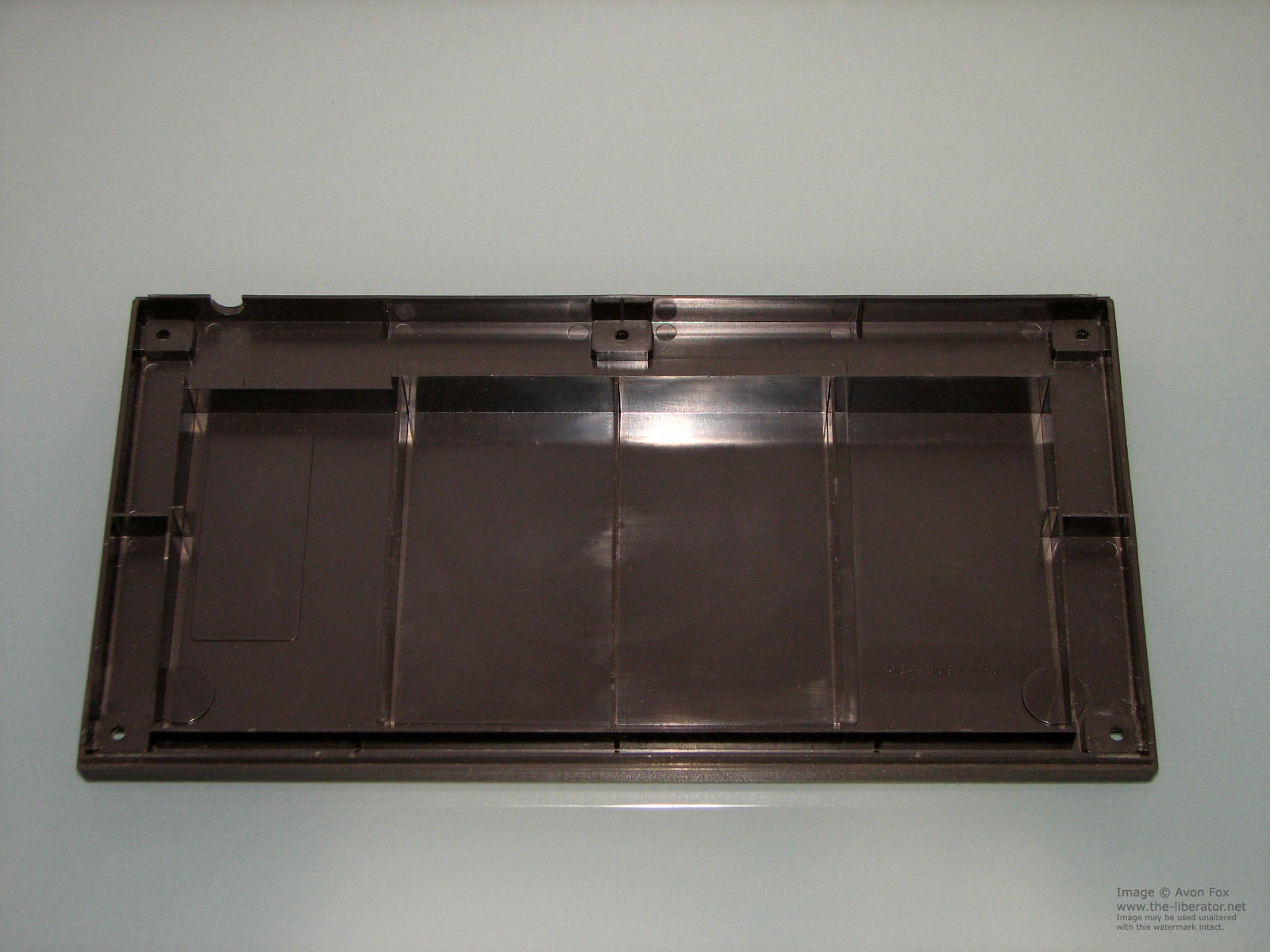

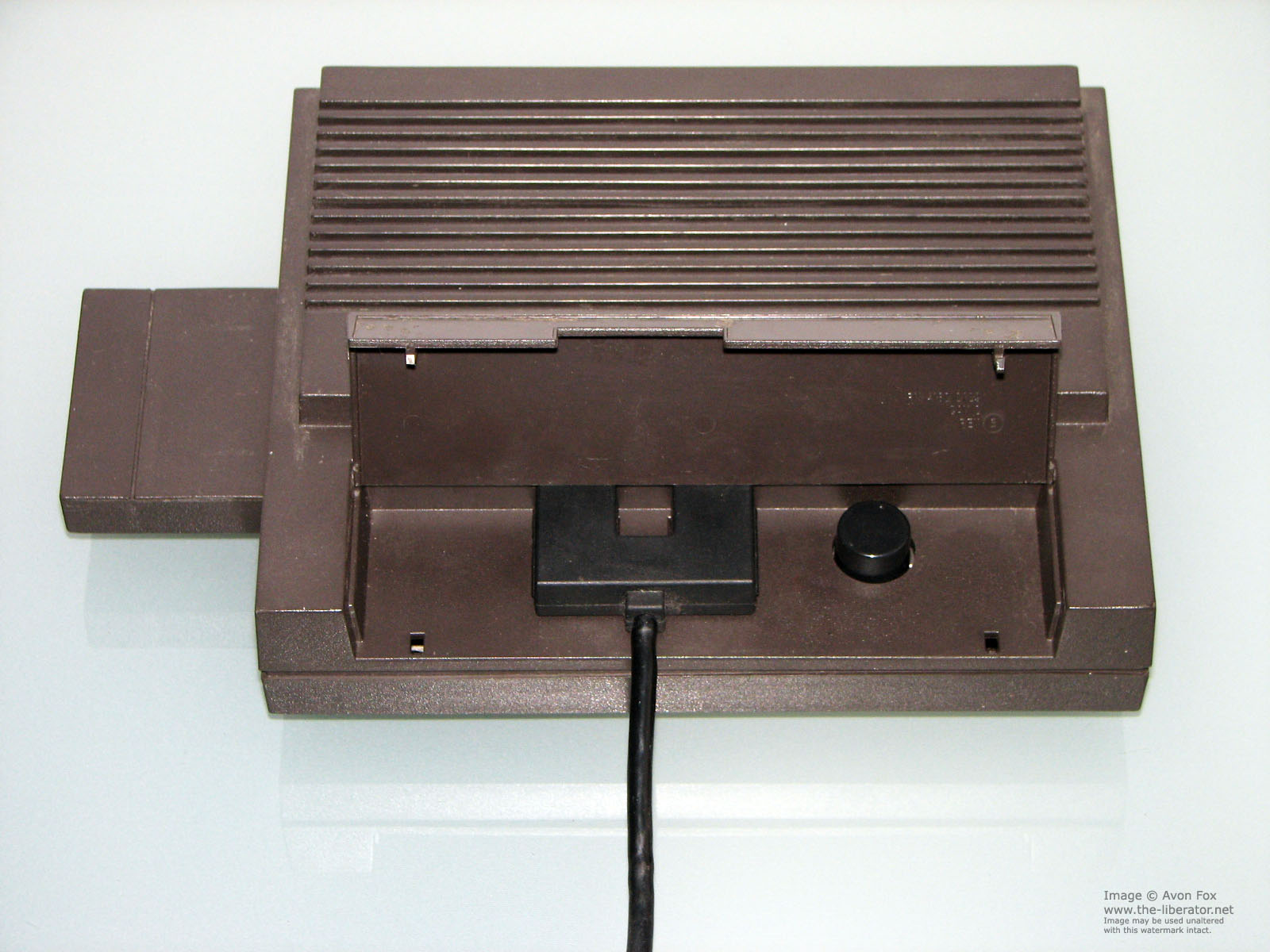

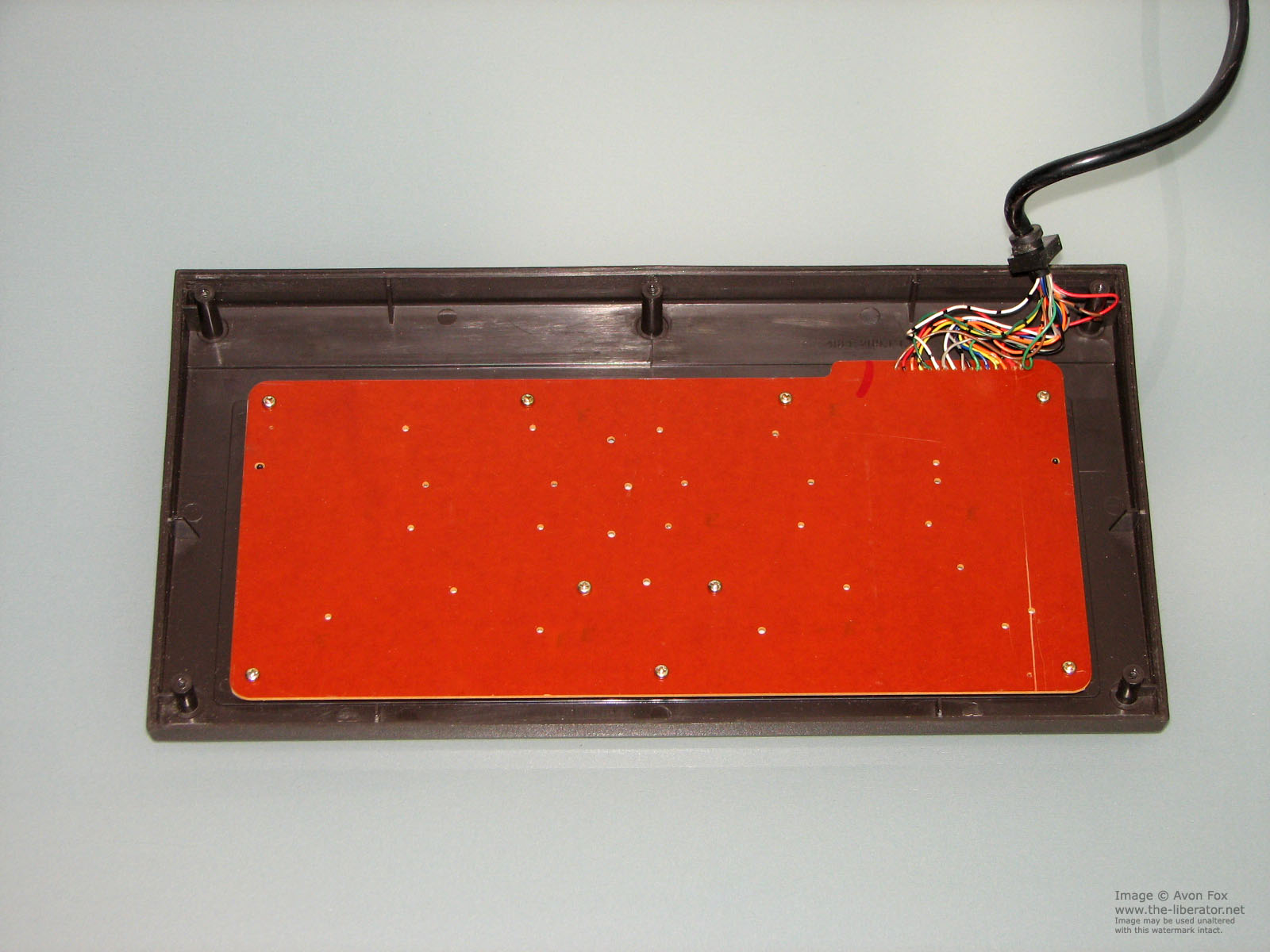

Intellivision Entertainment Computer System Cable Intellivision ECS Inside Intellivision Entertainment Computer System ECS Motherboard Intellivision ECS Keyboard
